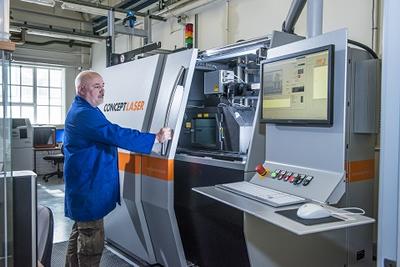

The ConceptLaser M2 metal printer has the following specifications:
- Axis dimensions: x=250 mm y=250 mm z=280 mm
- Layer thickness LaserCUSING® 20 – 80 μm
- Production speed LaserCUSING® 2 – 35 cm3/h (depending on material / laser power)
- Laser system 2 x 200 W (cw), optional 2 x 400 W (cw)
- Scanning speed 7 m/s, 4,5 m/s for variable focus move
- Focus diameter 50 μm, optional variable focus move (50 μm – 500 μm)
- Reference clamping system (optional) EROWA, System 3R / others on request
- Connected loads Max. power consumption 7.4 kW
- Power supply 3/N/PE AC 400 V, 32 A, compressed air 5 bar
- Inert gas supply 2 gas connections provided
- N2 generator external (optional)
- Inert gas consumption < 1 m3/h
- Filtering system integrated, with a 20 m2 filter surface
- Dimensions 2542 x 1818 x 1987 mm3 (W x D x H)
- Weight approx. 2.400 kg
- Operating conditions 15 – 35°C
