Ultra-high resolution lensless imaging unlocks new potential for Alzheimer’s disease studies

Published: 14 May 2020
Ultra-high res lensless imaging

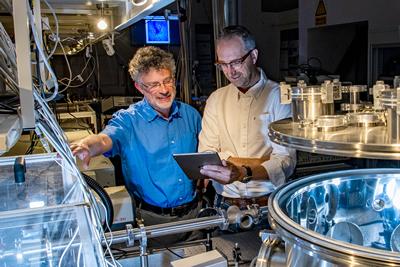

Professor Jeremy Frey (l) and Dr Bill Brocklesby (r) have published the research in Science Advances

Scientists have published highly-detailed images of lab-grown neurons using Extreme Ultraviolet radiation that could aid the analysis of neurodegenerative diseases.

The international study, led by the University of Southampton’s Professor Jeremy Frey and Dr Bill Brocklesby, used coherent Extreme Ultraviolet (EUV) light from an ultrafast laser to create images of the samples by collecting scattered light, without the need for a lens.

The technique produced extraordinary detail compared to traditional light microscope images, raising the possibility of potential applications in medicine including the study of Alzheimer’s disease.

Researchers have published their findings in Science Advances.

The team performed the work in Southampton and at the Artemis facility in the Rutherford Appleton Laboratory, Harwell. The small-scale demonstration reveals that extra detail can be sampled without large, expensive facilities such as synchrotrons and free electron lasers.

Professor Jeremy Frey, Head of Computational Systems Chemistry, says: “It has been a long and sustained effort but highly rewarding. In April 2003, we started a journey with the award of an Engineering and Physical Sciences Research Council Basic Technology grant for New Technology for nanoscale X-ray sources: Towards single isolated molecule scattering

“Some 17 years later, almost to the day, our paper in Science Advances demonstrates that the effort was well worth the hard work of our interdisciplinary team, obtaining the first ultra-high resolution images of a real biological sample using coherent soft-x-ray microscopy (ptyography). We are looking forward to applying our microscope to many biological, chemical and material problems.

“We continue to pursue even higher resolution with the ultimate aim of singe molecule imaging, a goal that now seems very much in view.”

The collaborative research combined Southampton expertise with Dr Richard Chapman and his team at the Central Laser Facility, and research partners from Germany and Italy.

The EUV imaging technique processes multiple scatter patterns from a sample using a computer algorithm. The project compared EUV images of lab-grown neurons originating from mice with traditional light microscope images, revealing its much finer details. Unlike hard x-ray microscopy, no damage was observed of the delicate neuron structure.

Dr Bill Brocklesby, of the Zepler Institute for Photonics and Nanoelectronics, says: “The ability to take detailed images of delicate biological structures like neurons without causing damage is very exciting, and to do it in the lab without using synchrotrons or other national facilities is a real innovation.

“Our way of imaging fills an important niche between imaging with light, which doesn’t provide the fine details we see, and things like electron microscopy, which require cryogenic cooling and careful sample preparation.”

This new approach has focused on nonlinear optical techniques and, in particular, from high harmonic generation (HHG) using intense femtosecond lasers. Following these results, the Artemis team in Oxford is working towards being able to offer regular access to this technique in the future.

The combination of tomographic imaging techniques with these latest advances in laser technologies and coherent EUV sources also has the potential for high-resolution biological imaging in 3D.
