Cyclic Corrosion Test (CCT) Chamber

Cyclic Corrosion Test Chambers (CCT) combine traditional exposure to salt spray with a variety of other controlled climates, including variable temperature & humidity, to create an accelerated simulation of service life conditions

Return to main nCATS facility page

The Cyclic Corrosion Test Chamber (CCT) combines traditional exposure to salt spray with a variety of other controlled climates, including variable temperature & humidity, to create an accelerated simulation of service life conditions, according to customer requirements. CCT is, therefore, particularly well suited to predicting product service life expectancy.

They come with the ability to create 4 distinct climates: 1. Salt spray; 2. Condensation humidity (wetting); 3. Air drying; 4. Controlled humidity. These may be programmed to occur in any sequence and be repeated automatically.

The Ascott CC450G comforms to the following standards:

  • ASTM B117
  • SAE J2334
  • ASTM G85
Cyclic Corrosion Test Chamber

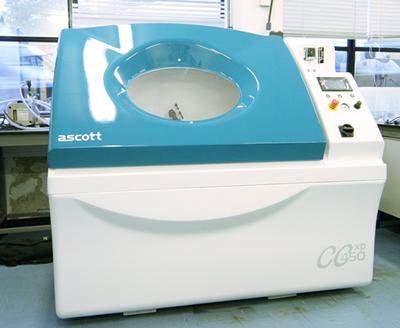

Ascott CC450G chamber

nCATS has run various projects in the Ascott CC450G CCT chamber has been used in various research, student and consultancy projects from development of new sensors to electrochemical measurements of metals and coatings.  Additionally corrosion of aircraft paints and comparison to environmental weathering has been explored.

Projects include:

 Specification Range/Value
 Chamber Capacity:  450 Ltrs
 Mounting Format  Floor standing
 Loading threshold  800mm
 Chamber external dims, max  W 1660mm × D 840mm × H 1510mm
 Chamber internal dims, max  W 1010mm × D 640mm" × H 1140mm
 Salt solution reservoir ext. dims.  W 460mm × D 620mm × H 675mm
 Salt solution reservoir capacity   80 Ltrs
 Removable slotted sample racks  6 racks each with 28 angled slots
 Chamber construction  Glass reinforced plastic, Polypropylene & PVC parts
 Temperature range  Adjustable from ambient to +50°C
 Salt spray fall-out rates  Adjustable from 0.5 to 3.0 ml per 80 cm² per hour
