µ-VIS: Multidisciplinary, Multiscale, Microtomographic Volume Imaging

XRH scanner | UoS 3D X-ray Histology Scanner

- Setting the foundations for 3D X-ray histology (XRH) -

UoS X-ray Histology Scanner (delivery)
UoS X-ray Histology Scanner (delivery)

This is a custom-designed µCT scanner optimised for high throughput 3D X-ray Histology. This scanner was designed by the μ-VIS and the XRH team and built by Nikon X-Tek systems Ltd. It is the cornerstone of the second phase of development of 3D X-ray Histology, which is fully funded by Wellcome Trust (2019-2022; £1.14M; Wellcome Trust, Biomedical Resource and Technology Development Grant).

The XRH scanner can be used for non-destructive radiographical and tomographical inspection of biomedically relevant specimens, and is optimised for high-throughput imaging of unstained formalin-fixed and paraffin-embedded (FFPE) soft tissue specimens.

The equipment was commissioned in January, 2020 and is hosted at the Biomedical Imaging Unit at University Hospital Southampton.

In a nutshell:

‣ Nikon multi-target micro focus X-ray source
 ↪ 130 kVp / 130 W Mo rotating target (custom)
        10 μm spot up to 50 W
 ↪ 180 kVp / 20 W Mo transmission targets (custom)
        1.5 μm spot up to 5 W
 ↪ 225 kVp / 225 W multimetal reflection target
        2.5 μm spot up to 7 W
‣ sample autoloader | up to 10 specimens per rack (custom)
‣ optimised for high throughput 3D X-ray Histology
‣ 2.8 x 2.8 k 16-bit flat panel detector
‣ Standard cone-beam & helical scanning
‣ samples up to ~400 mm and up to 50 kg

Slideshow image
UoS X-ray Histology Scanner (acceptance) - Prof. Mark Smith, UoS VC & the XRH team
Slideshow image

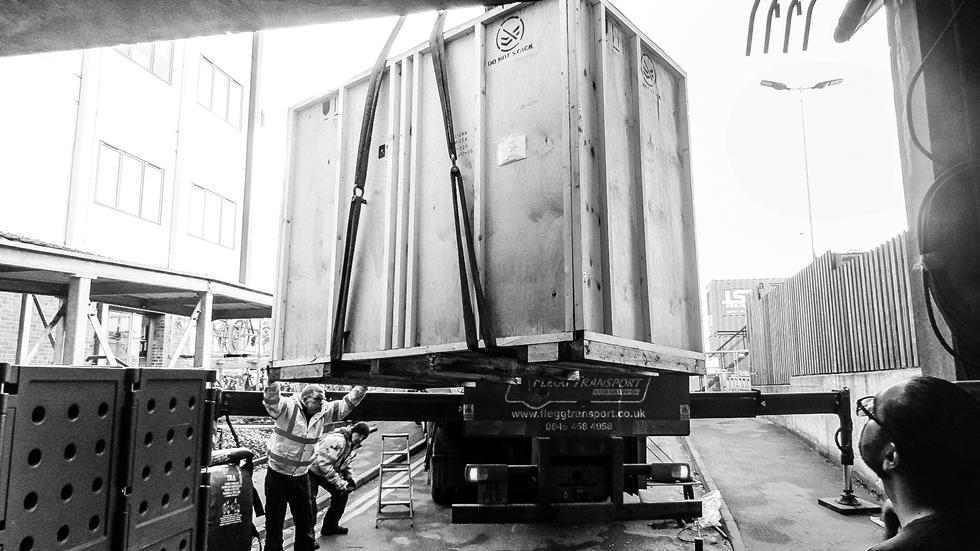

UoS X-ray Histology Scanner (delivery)
Slideshow image

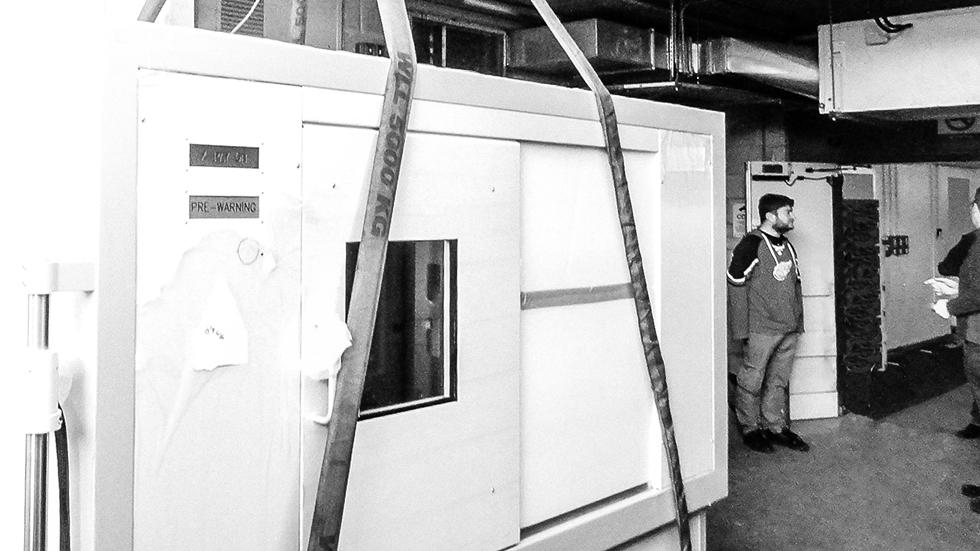

UoS X-ray Histology Scanner (delivery)
Slideshow image

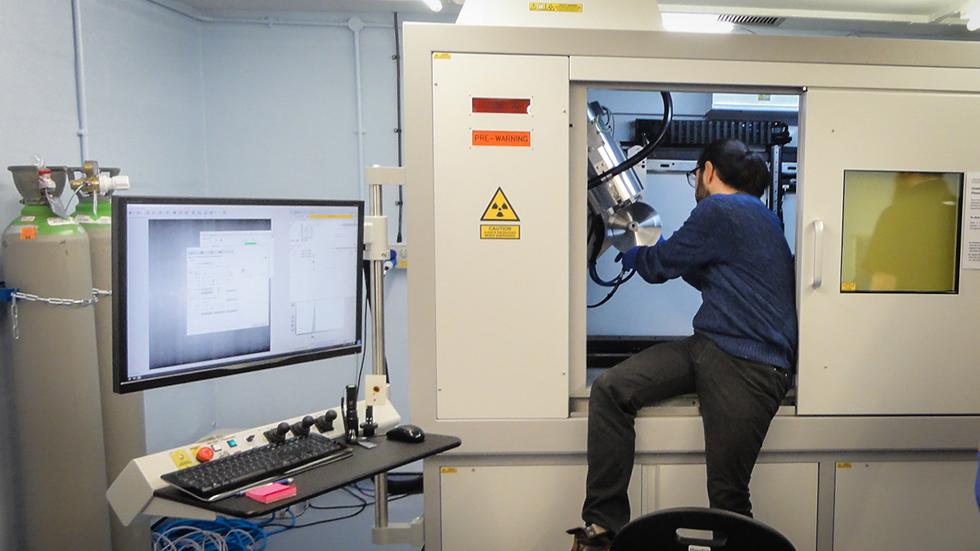

UoS X-ray Histology Scanner (commissioning)
