Railway ballast

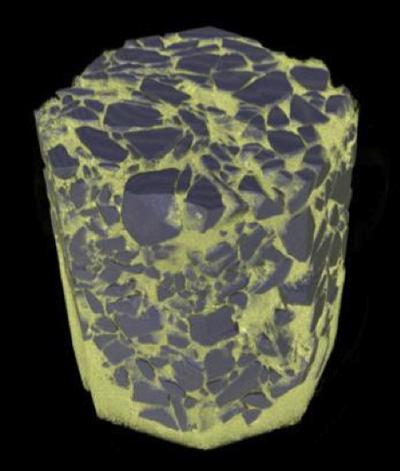

3D rendering of the void space (yellow) and granit ballast (blue-gray)
3D rendering of the void space (yellow) and granit ballast (blue-gray)

Sharif Ahmed1, Antonis Zervos1

1Engineering and the Environment, University of Southampton

Over its life cycle, railway ballast undergoes changes to its fabric structure due to train loading and maintenance (e.g. tamping). Understanding these changes and linking them quantitatively to the loading regime has the potential to result in improved designs for new track and more cost-effective maintenance of the existing network. A method has been developed to remove a structure-preserved sample of approximate dimensions [300 x 300 x 300] mm from below the sleeper railseat.

Traditionally, mechanical thin-sectioning had to be used as means of internal structure analysis on samples of this size and density. However, the new facilities at the μ-VIS centre are able to penetrate these samples with very good resolution, allowing for true 3 dimensional analysis of the internal structure.

Role of computed tomography

In order to quantify the internal structure of any granular media one must describe the particle orientation, void/pore network and contact points in 3D space. Computed Tomography (CT) provides the only means of carrying out this form of quantitative analyses non-destructively.

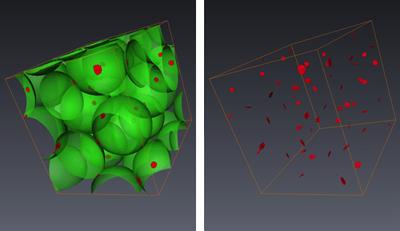

Contact patches with a sample of glass ballantini
Contact patches with a sample of glass ballantini

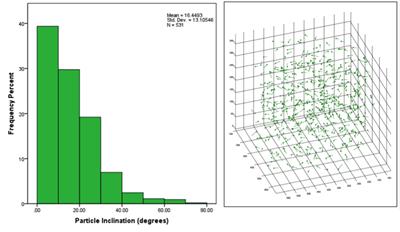

Ballast particle orientation in 3D space
Ballast particle orientation in 3D space

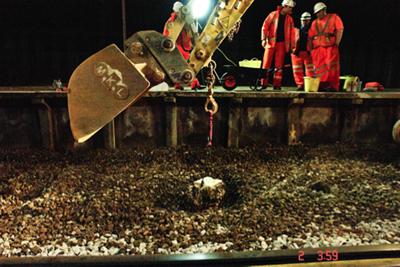

sampling in progress
sampling in progress

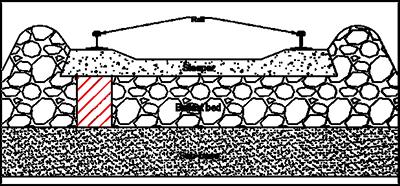

schematic drawing of rail track section (sampling region is the red)
Schematic drawing of rail track section (sampling region is the red)
