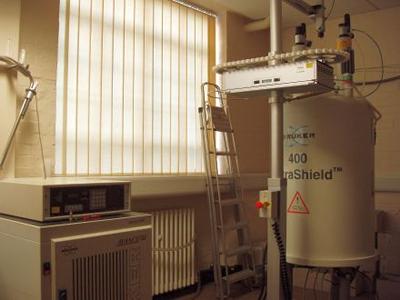

Bruker AVII400 FT?NMR Spectrometer (400/2) | The NMR Spectroscopy Facility

The AVII400/ FT-NMR spectrometer ("400/2") can be booked for experiments that require greater manual intervention than allowed with the open-access instruments.

The 400/2 is equipped with six probes that cover the full range of 1D and 2D proton, fluorine and carbon, multinuclear and HR-MAS NMR experiments. — Bruker AVII400 FT-NMR Spectrometer

The 400/2 is primarily used for non-routine NMR spectroscopic analyses not suited to the open-access systems (e.g. extended variable temperature multinuclear NMR studies, NMR titrations, ¹⁹F T1 measurements).

The current probe load-out:

Dual H/C probehead for computer switchable observation of ¹H and ¹³C with ²H lock (5 mm) fitted with z-gradient coil.
BBO multinuclear probe with automatic tuning and matching for observation of nuclei from ¹⁰⁹Ag (18.62 MHz) to ³¹P (161.98 MHz) with ¹H decoupling and ²H lock (10 mm) fitted with z-gradient coil.
Multinuclear probeheads with manual tuning for observation of nuclei from ¹⁰³Rh (12.79 MHz) to ³¹P (161.98 MHz) with ¹H decoupling and ²H lock (10 mm).
Selective fluorine probehead for observation of ¹⁹F with ¹H decoupling (also ¹H observe with ¹⁹F decoupling) with ²H lock (5 mm) fitted with z-gradient coil.
HR-MAS accessory for high-resolution magic angle spectroscopy - MAS probehead tuned for ¹H, ¹³C and ²H (4 mm for spinning speeds up to 15 KHz).

Location

B27/1013

Data FTP Server

152.78.196.40
