Optical (non-contact) 3D profilometer (Proscan 2200)

The Proscan 2200 is a state-of-the-art non-contact surface measurement instrument, equipped with a range of chromatic and laser sensors.

Return to main nCATS facility page

The Proscan 2200 is a state-of-the-art non-contact surface measurement instrument, equipped with a range of chromatic and laser sensors.  The Proscan is capable of rapid three-dimensional surface profiling at rates of up to 1,000 measurements per second, and can achieve precise measurements even on polished or transparent surfaces with a resolution of 5nm.

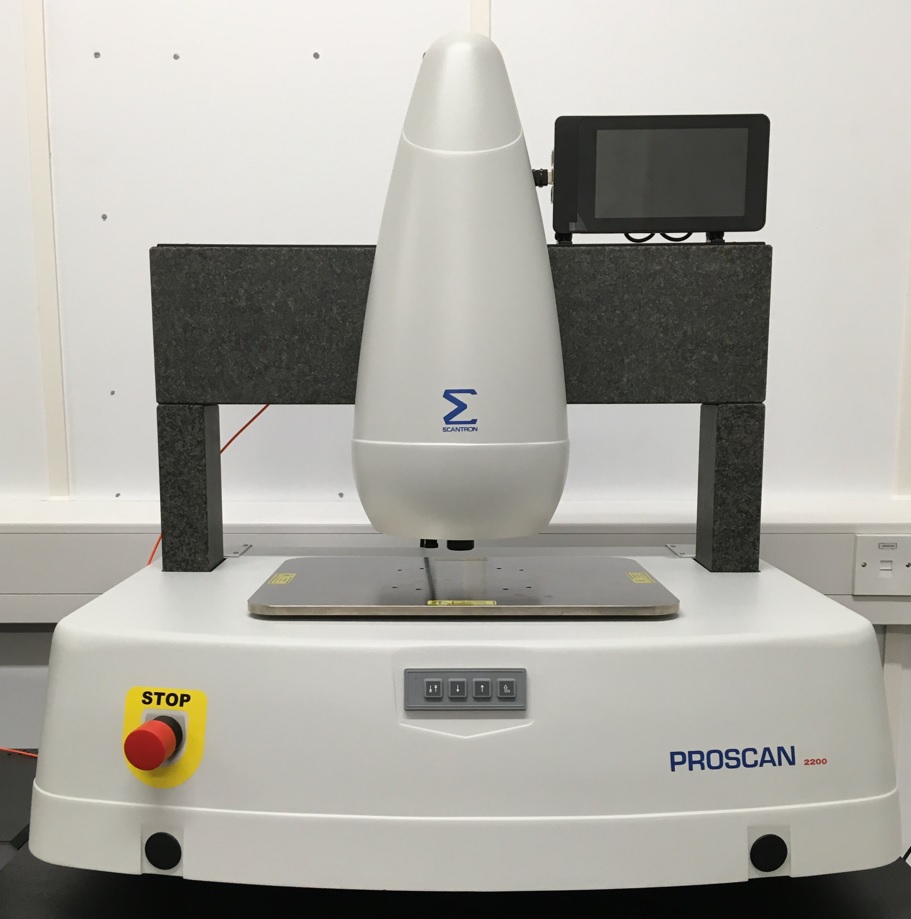

Proscan 2200
Proscan 2200

The Proscan software package comprises a variety of ISO analytical tools for surface form, finish, and feature geometry, as well as area and volume-based measurements.

The system has been used for range of tribological surface examining wear loss as well measuring surface roughness on bearing surfaces.

Projects involving the Proscan include:

Early detection of contact distress for enhanced performance monitoring and predictive inspection of machines

Papers produced include:

Easily fabricated monolithic fluoropolymer chips for sensitive long-term absorbance measurement in droplet microfluidics

Specifications
Scanner overall dimensions max (w x h x d) 740 x 542 x 835 mm
Scanner weight max 120 kg
Power supply overall dimensions 430 x 350 x 140 mm
Power supply weight 6.1 kg
PC Monitor (standard) 19” TFT flatscreen
Scanning plate size 380 x 280 mm
X and Y travel 150 x 100 mm
Z travel 100 mm
Electrical requirements 100 - 110 or 220 - 240 VAC, 50 - 60 Hz
Operating temperature 10 - 35 deg C
Step size X and Y (minimum) 0.1 μm
Step size X and Y (maximum) < maximum stage travel
Sample weight (maximum) 4 kg
Data collection rate (maximum) depends on sensor & set-up 10 kHZ
Scanning speed (maximum) depends on set-up 80 mm/s
Maximum number of data points 64,000 per line
Scanning plate to sensor maximum clearance 100 mm nominal depending on sensor

We currently have sensor S3/015, S11/040 and S12/1.4, highlighted in the table below.

Sensor Model Resolution (μm) Measuring Range (mm) Stand off (mm) Spot size (μm) nominal Technology
S3/015 0.011 0.15 3.3 1.1 Chromatic
S11/040 0.018 0.4 10.8 1.8 Chromatic
S12/1.4 0.026 1.4 12.2 2.6 Chromatic
S16/2.5 0.075 2.5 16.4 8 or 13.2 Chromatic
S29/10 0.280 10 29 16 or 22 Chromatic
S20/20 0.600 20 19.6 16 or 25.6 Chromatic
L25/2 0.03 2 24 35 - 80 Laser
L35/10 0.15 10 30 50 - 110 Laser
L50/20 0.3 20 40 60 - 160 Laser
L195/40 0.6 40 175 210 - 230 Laser
L70/50 0.8 50 45 80 - 215 Laser

Below there is a link to the general user guide and guides for the various software packages for the Proscan 2200.

Useful Downloads

In house user guide

Proscan User Guide

Proform

Roughness Guide

STIL guide to chromatic sensors
