Multi-station wear rig

nCATS has a multi-stationed wear rig, designed and manufactured by Phoenix Tribology Ltd

Return to main nCATS facility page

nCATS has a multi-stationed wear rig (TE85), designed and manufactured, manufactured by Phoenix Tribology Ltd. The configuration is an eight station orbital tooth brushing rig provides circular orbital, elliptical orbital and reciprocating motion, with fixed tooth brush samples loaded against moving teeth samples.

Toothbrushes are cut down for easy attachment to the loading arms. The arms are provided with adjustable counter weights allowing neutral balancing to be achieved. Spirit levels are provided on each arm to aid with levelling. Teeth samples, which are normally set in epoxy discs, are held in radially sprung fixtures. These are then mounted in individual baths on the motion plate. Load is applied directly to each toothbrush sample by dead-weights acting on linear bearing mounted load rods.

Eight Station Orbital Tooth Brushing Rig
Multi-station wear rig

The motion system comprises a platform mounted on an x-y slide assembly and actuated by a double scotch yoke mechanism driven by an a.c. gear-motor. The frequency of motion is controlled by inverter and may be adjusted in the range 0.2 to 2.0 Hz. The displacement on one axis is set at an amplitude of 5 mm (stroke of 10 mm) and the amplitude on the orthogonal axis may be set at 0 mm (reciprocating), 1, 2, 3, 4 mm (elliptical orbital motion) or 5 mm (circular orbital motion).

Eight computer controlled peristaltic pumps deliver toothpaste and saliva simulant to the brushing surface.  This allows independent ‘slurry’ delivery.

The rig has three axis force transducers may be incorporated on as many stations as is required to provide measurement of applied load and frictional resistance on orthogonal axes. A high speed data acquisition interface is included for recording the signals.

The current project is exploring the polishing effects of different abrasive particles typically incorporated in toothpaste.

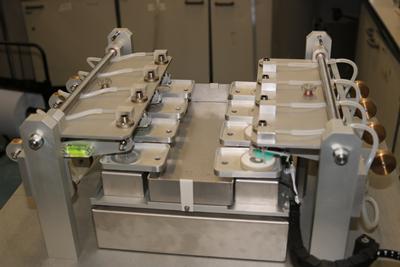

eight station orbital tooth brushing rig

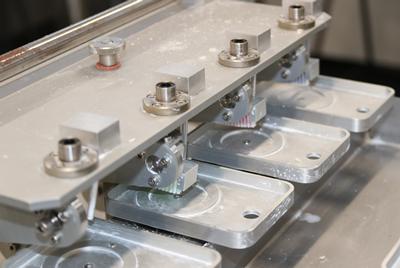

tooth brushed in Multi-station wear rig

Specifications:

 AttributeRange/Value
 Load per brush:  150 to 500 grams
 Motion x direction:  10 mm (fixed) (+/-5 mm)
 Motion y direction:  0 to 10 mm in 2 mm steps (+/-0, 1, 2, 3, 4, 5 mm)
 Maximum Frequency:  2 Hz (120 rpm)
 Automatically Controlled Parameters:  Frequency

 Test Duration

 Fluid Flow Rate
 Manually Controlled Parameters:  Load

 Y Amplitude
 Measured Parameters  Frequency

 Load (optional)

 Friction Force (optional)

 Number of Cycles
 Services - electricity  220/240V, single phase, 50 Hz, 3 kW
