The NMR Spectroscopy FacilityCapabilities

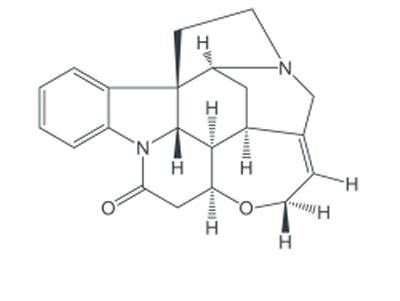

The 1D NMR spectra of the alkaloid poison strychnine are relatively complicated with several areas of overlapping signals. The molecule is often used as a standard to test advanced 2D NMR experiments.

Useful Downloads

Need the software?PDF Reader

Data Collection

Bruker DPX400/2 FT-NMR spectrometer (legacy)

5 mm DUL-C-H probe

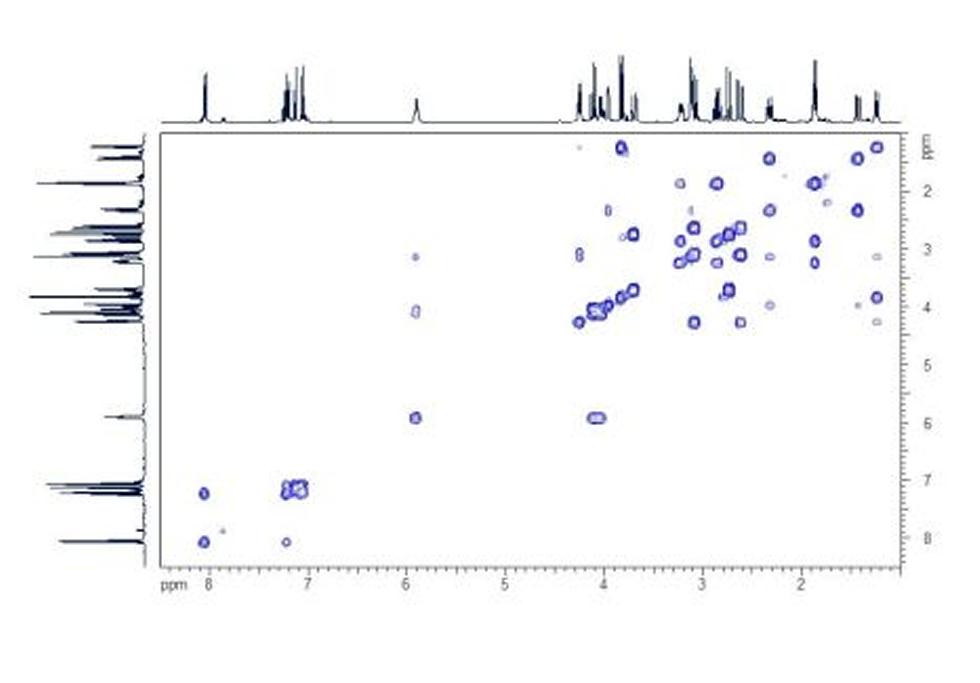

HH COSY. The HH COSY spectrum shows the proton coupling network within the molecule.

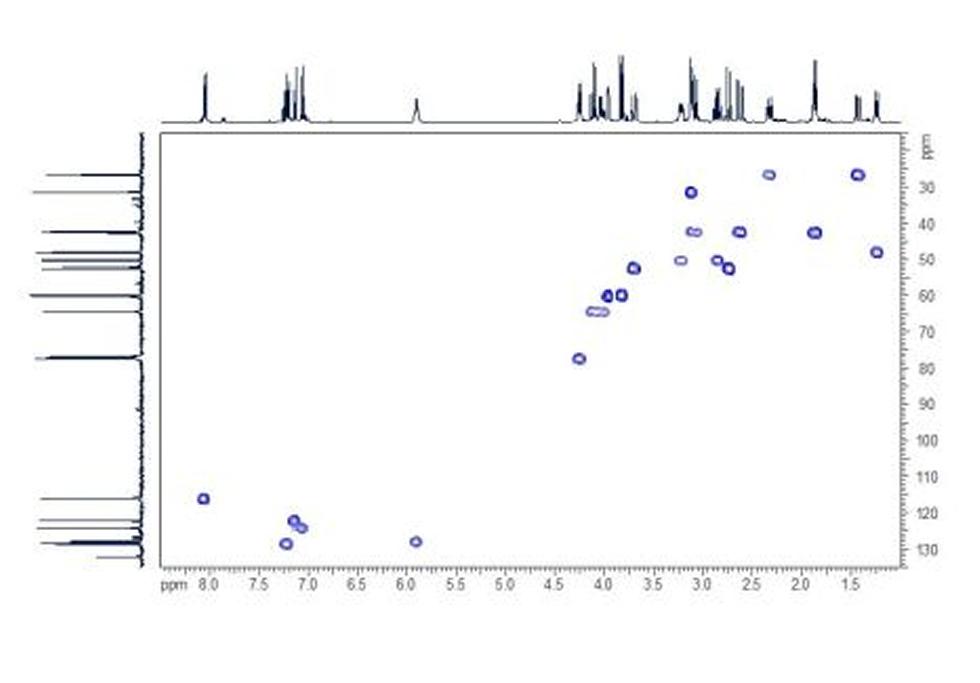

HMQC. In the HMQC spectrum the one-bond direct HC couplings can be viewed as cross-peaks between the proton and carbon projections.

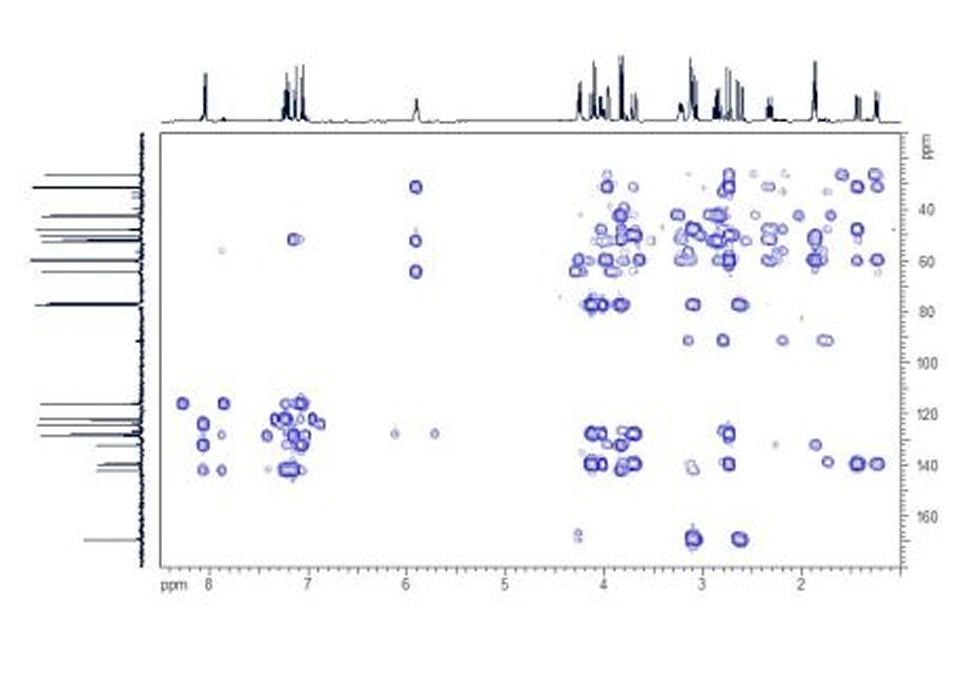

HMBC. In the HMBC spectrum the two- and three- bond couplings between protons and carbons can be seen as cross-peaks.
