Linking Ambisonics with Compensated Amplitude Panning

Published: 21 February 2019
Experimental setup

The most fun you can have with two loudspeakers

We have published a new paper in IEEE Signal Processing Letters that describes how Ambisonics encodings, made famous by 360 video, can be reproduced exactly and efficiently using an extension of the Compensated Amplitude Panning (CAP) reproduction algorithm.

CAP can be viewed as an extension of panning processes often used for stereo and multichannel production. Instead of being static, the loudspeaker signals depend dynamically the precise position and orientation of the listener’s head, which are measured using a tracking process. CAP works by activating subtle but powerful dynamic cues in the hearing system. It is able to produce stable images in any direction, including behind and above, using only 2 loudspeakers, which greatly increases the practicality of surround sound in some cases. The approach bypasses conventional cross-talk cancellation design, and overcomes previous limitations in providing accurate dynamic cues for full 3D reproduction.

The system will be demonstrated in the forthcoming AES conference on interactive and immersive audio in York, UK.  Papers related to this work will also be presented at the AES convention in Dublin, Ireland, and the ICASSP meeting in Brighton, UK.

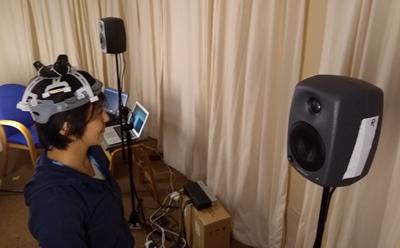

The photo shows the current experimental setup using an HTC Vive tracker device, at the Institute for Sound and Vibration Research in Southampton. Eventually more practical tracking methods will be used, for example based on video or embedded devices.

CAP can be used to playback conventional multichannel audio, by creating virtual loudspeakers to the side and rear. In addition the Ambisonic decoder extension for CAP (BCAP) can reproduce Ambisonic encodings directly. Each encoding can produce a scene of any complexity consisting of far and near images, represented by the outer and inner circles below. As the listener moves the direction to each image stays fixed, which for far images enhances the impression of a fixed background. An Ambisonic encoding can be easily rotated, which can be used for example to simulate the background from inside a vehicle, or a personal head up display. The dots represent discrete images produced by instances of CAP.

This work was supported by the Engineering and Physical Sciences Research Council (EPSRC) “S3A” Programme Grant EP/L000539/1, and the BBC Audio Research Partnership.
