Dynamic stiffness testing

Our indenter rigs measures the dynamic stiffness of compliant materials and components, and the dynamic characteristics of parts such as dampers, springs, mounts and isolators.

Applications include:

seating and cushioning
vehicle and machinery mounts
packaging and protective materials

They can also be used for quasi-static compression testing, to measure load-deflection curves.

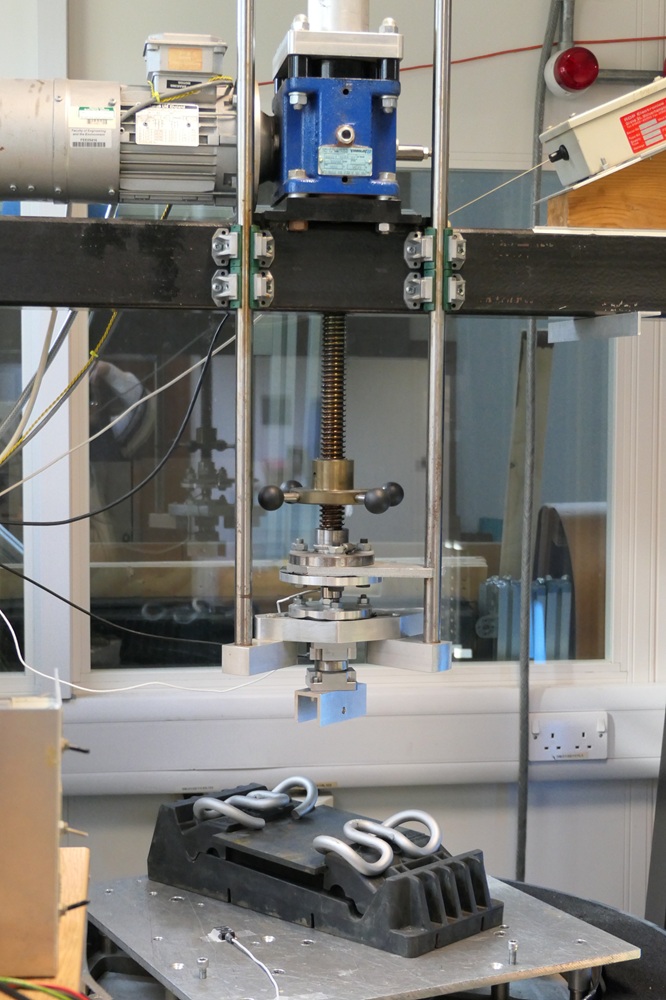

Dynamic stiffness measurement system with a material sample mounted beneath a loading actuator

Specifications

Equipment:

Ling V860 electro-dynamic vibrator

Force and acceleration limits:

peak sinusoidal force up to 20 kN
acceleration up to 23 g

Displacement:

peak-to-peak displacement up to 25.4 mm

Frequency range:

from 1 to 1500 Hz
