Electrodynamic shakers

We have a wide range of electrodynamic vibration testing shakers capable of reproducing motion with displacements of up to 50 millimeter (mm), payload capacities of up to 500 kilogram (kg), and frequencies up to 10 Kilohertz (kHz). Horizontal motion can be reproduced using trunnion mounts and slip tables.

The electrodynamic vibrators are used for a wide variety of purposes:

  • fundamental research into discomfort
  • measurements of the impedance of the body
  • measurements of the dynamic performance of seats and seat components
  • testing of the vibration isolation performance of gloves
  • studies of the effects of vibration on the cardiovascular system
  • standardised vibration tests
  • testing to specific requirements of the customer

Smaller vibrators are suitable for hand-arm vibration studies while the larger vibrators are capable of supporting a person while applying a vibration.

All vibrators may be computer-controlled to reproduce arbitrary test motions as specified by the experimenter.

Several vibrators are trunnion-mounted to allow the axis of vibration to be varied, and the larger vibrators can be connected to a slip table to provide a horizontal vibrating platform capable of supporting test subjects or apparatus.

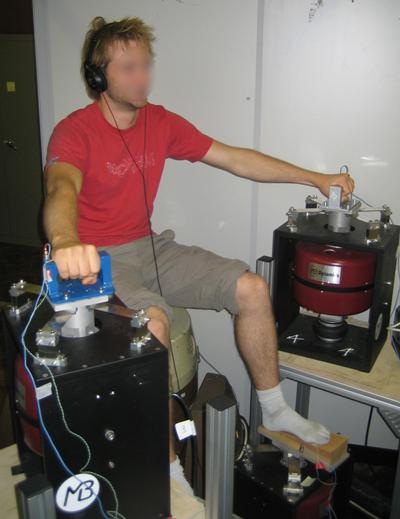

Participant using hand and foot controls connected to electrodynamic shakers for vibration perception and human response testing

Participant using hand and foot controls connected to electrodynamic shakers for vibration perception and human response testing

Specifications

LDS V830

  • Actuation: electrodynamic
  • Displacement: up to 25.4 mm
  • Acceleration: up to 405 metre per second squared (ms-2)
  • Peak velocity: 2 meters per second (m/s)
  • Frequency range: 0.5 Hz to 3000 Hz
  • Table diameter: 610 mm
  • Payload: 160 kg
  • Human-rated: no
  • Capable of horizontal motion using trunnion mounts or LPT600 slip table

LDS 860 High Z

  • Actuation: electrodynamic
  • Displacement: up to 13 mm
  • Acceleration: up to 500 m/s²
  • Frequency range: 0.5 Hz to 2000 Hz
  • Table diameter: 610 mm
  • Payload: 680 kg
  • Human-rated: no

Derritron VP180 LS

  • Actuation: electrodynamic
  • Displacement: up to 25 mm
  • Acceleration: up to 300 m/s²
  • Frequency range: 0.1 Hz to 200 Hz
  • Table diameter: 152 mm
  • Payload: 91 kg
  • Human-rated: yes

Derritron VP85

  • Actuation: electrodynamic
  • Displacement: up to 13 mm
  • Acceleration: up to 550 m/s²
  • Frequency range: 0.1 Hz to 5000 Hz
  • Table diameter: 178 mm
  • Payload: 38.5 kg
  • Human-rated: yes
  • Capable of horizontal motion using trunnion mounts or Kimball slip table

Derritron VP30

  • Actuation: electrodynamic
  • Displacement: up to 5.7 mm
  • Acceleration: up to 400 m/s²
  • Frequency range: 1 Hz to 4500 Hz
  • Table diameter: 146 mm
  • Payload: 23 kg
  • Human-rated: yes
  • Capable of horizontal motion using trunnion mounts

MB Dynamics Energizer Red (4 off)

  • Displacement: up to 19 mm
  • Acceleration: up to 400 m/s²
  • Frequency range: 1 Hz to 6000 Hz
  • Table diameter: 114 mm
  • Payload: 6 kg
  • Human-rated: yes
  • Capable of horizontal motion using trunnion mounts

Kimball Industries 7020 slip table

  • Displacement: up to 19 mm
  • Acceleration: up to 400 m/s²
  • Frequency range: 1 Hz to 6000 Hz
  • Platform: 0.61 m × 0.61 m
  • Payload: 1814 kg
  • Human-rated: yes
  • Capable of horizontal motion using trunnion mounts

Other electrodynamic shakers

  • Derritron VP75
  • LDS 403
  • Derritron VP4
